The Pipeline#

The CV/OCR pipeline turns the source scanned PDF into the canonical OCR database and the normalized page images that the npm packages ship. Consumers of humument never run this — the data is published on npm. You only need the pipeline to rebuild the dataset (e.g. after swapping the source scan or changing the OCR logic).

Six pages of A Human Document, each shown at the four CV pipeline stages — raw scan, deskewed and cropped, normalized black-and-white, and whitespace-plus-features analysis

The stages below across six pages — one row each: 01a raw scan → 01c deskewed & cropped → 01d normalized B&W → 01e + 02 word-rarity features + whitespace graph. Read a column to follow one page through the pipeline.

Requirements#

macOS — OCR is done locally with Apple Vision (via ocrmac); there are no cloud APIs and no Linux path.
uv — the Python project (pyproject.toml) is managed with uv (Python ≥ 3.11).

Running it#

From the repo root:

uv sync
make pipeline   # stages 01a → 03, in order
make verify     # validate + pytest + typecheck (the data-contract gate)

make pipeline runs the numbered stages in order; make verify runs the gate that protects the data contract (validate + test + typecheck).

Page numbering#

The DB is keyed by the printed book page (page_num, 1–367), which equals the A Humument page. The PDF scan has front matter and a trailing publisher catalogue, so the raster index differs from the printed page by a constant:

raster_index (1-based into the PDF) = printed_page + PAGE_OFFSET   # PAGE_OFFSET = 9

This offset is applied in exactly one place — stage 01a. Afterwards every artifact and DB row is keyed by printed page, so all later stages and the editor work in printed-page space with no offset awareness. (All of this lives in pipeline/config.py: OUTPUT_WIDTH/HEIGHT = 1400×2100, DPI = 300, the B&W cleanup knobs, etc.)

Stages#

Configured in pipeline/config.py; run by the Makefile.

Stage	Script	Does
01a `rasterize`	`01a_rasterize.py`	PDF → `data/pages/*.jpg` at 300 dpi. The only place `PAGE_OFFSET` is applied.
01b `ocr_raw`	`01b_ocr_raw.py`	Raw macOS Vision OCR → `data/humument.db`.
01c `correct_tilt`	`01c_correct_tilt.py`	Deskew, align (anchoring the running header), and re-OCR → `data/pages_corrected/`.
01d `normalize_color`	`01d_normalize_color.py`	B&W high-contrast normalization, shadow removal, flat-field, text-bbox crop → `data/pages_normalized/`.
01e `features`	`01e_features.py`	Tag every word with POS, lemma, frequency, rarity (spaCy + wordfreq).
02 `whitespace_graph`	`02_whitespace_graph.py`	Whitespace gutters, word docks, and the routing graph used to draw rivers of type.
03 `export_web`	`03_export_web.py`	Export the DB to static JSON under `output/db/` (catalog, per-page `pNNNN.json` + gzipped twin, search index). This is the payload published as `humument-data`.

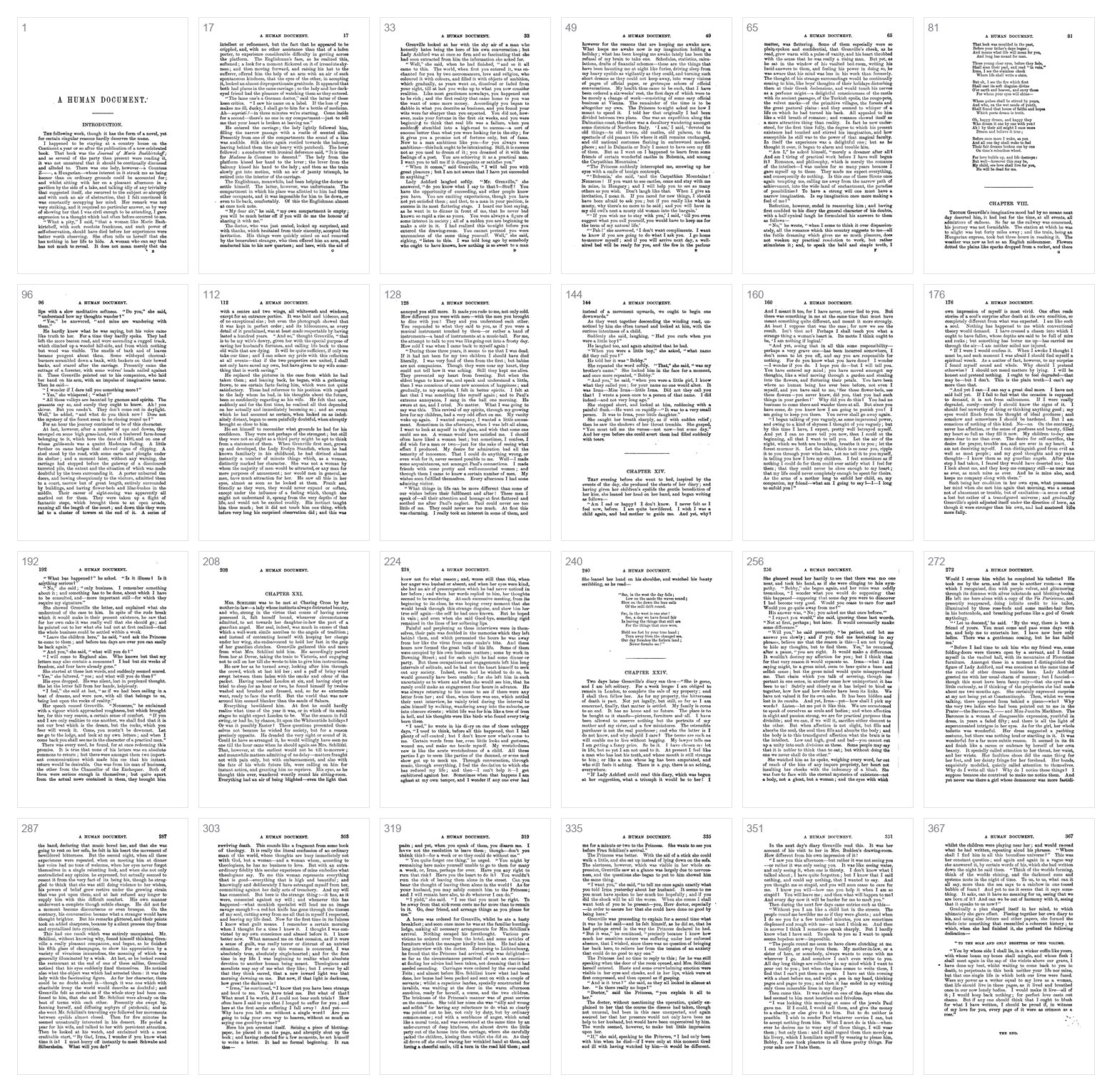

A grid of normalized page scans sampled across the 367-page book

The output of stage 01d — 367 normalized B&W pages (a sample spread across the book), published as humument-images.

The canonical database#

data/humument.db is a SQLite database, keyed by page_num (1–367), and is the source of truth. Its six tables — pages, words, page_corrections, page_gutters, word_docks, and page_graph — are exactly what stage 03 serializes to JSON. See Data Format for the schema.

Because Apple Vision OCR is nondeterministic, the DB is versioned in the repo via git-lfs rather than regenerated; re-running the pipeline won't reproduce it byte-for-byte.

Verification#

make verify is the data-contract gate, and pipeline/validate_db.py is the heart of it — a read-only check of every invariant the editor relies on:

page_corrections.page_num is exactly the contiguous content range (this is what makes page_num == printed page == A Humument page);
pages dimensions equal the normalized canvas and the actual JPEG dims (word-overlay alignment depends on it);
NLP columns, graph, gutters, and docks are all populated and JSON-parseable;
the page number printed in each running header matches page_num (≥ 85%) — objective proof of the page correspondence.

It exits non-zero on failure, so it doubles as the CI/pytest gate (pipeline/tests/).

Publishing the data packages#

data-packages/sync.mjs copies the pipeline outputs into the two data packages at publish time (output/db → humument-data; data/pages_normalized → humument-images). See npm Packages.
