humument#

The canonical toolkit and data for computational work over W. H. Mallock's A Human Document (1892) — the one-volume Chapman & Hall "New Edition" that Tom Phillips treated to make A Humument. It maps page-for-page onto that edition, so page numbers here equal the printed book page (= the A Humument page), 1–367.

If you want to make Phillips-style erasure poetry — selecting a few words on a scanned book page and drawing balloons and rivers of type around them — programmatically, this project gives you the whole book (every page's words, OCR boxes, and whitespace geometry) with zero configuration, ready to render with any 2D API.

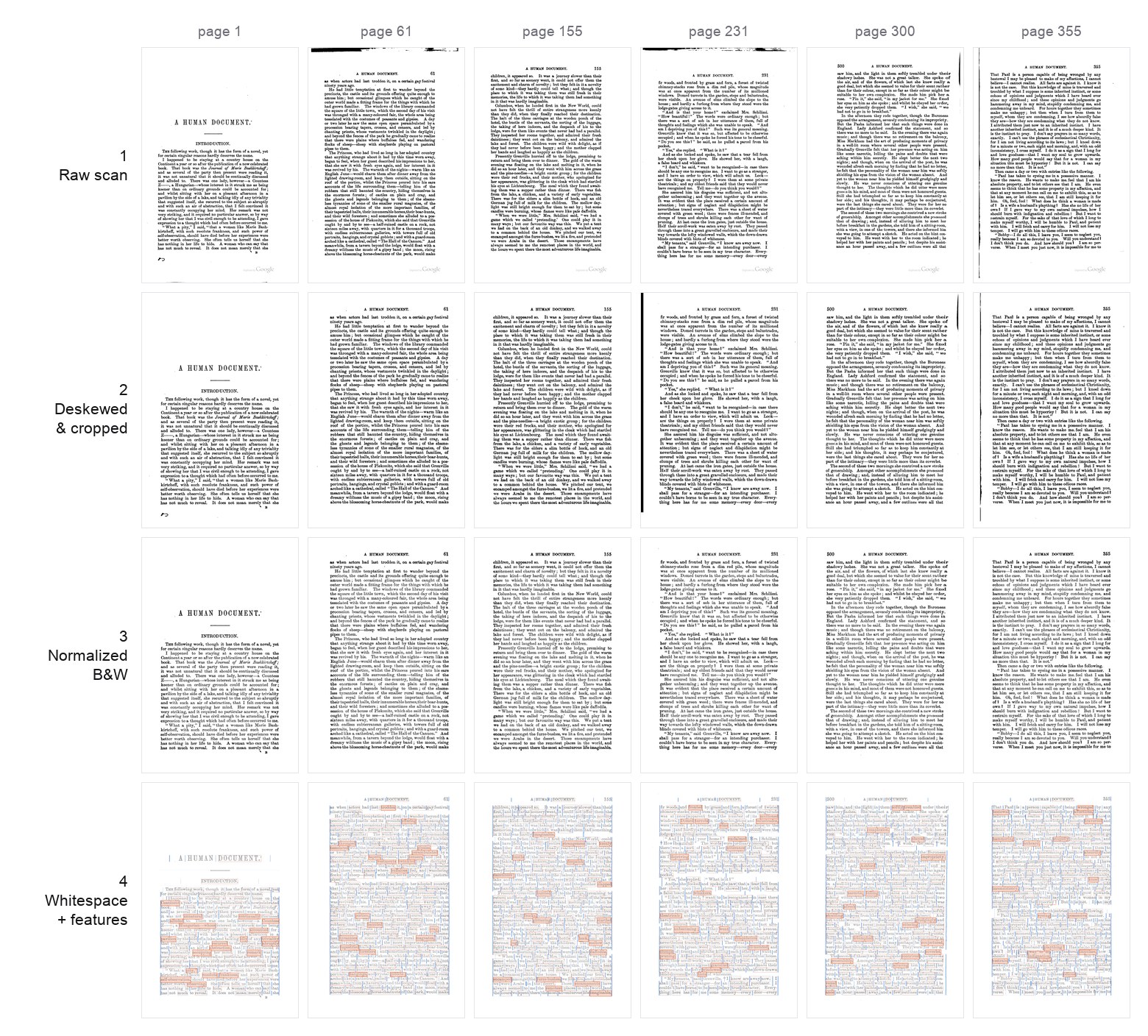

Six pages of A Human Document, each shown at the four CV pipeline stages — raw scan, deskewed and cropped, normalized black-and-white, and whitespace-plus-features analysis

The CV pipeline across six pages — one row per stage: 1 raw scan → 2 deskewed & cropped → 3 normalized B&W → 4 whitespace graph + word-rarity features (rarest words highlighted). Read a column top-to-bottom to watch one page get aligned, cleaned, and analysed.

What is erasure poetry?#

Tom Phillips took a forgotten Victorian novel and, page by page, painted over almost all of it — leaving a scattered handful of words connected by hand-drawn "rivers" to form a new poem. humument reproduces the raw material for that kind of work: the OCR'd words with their pixel positions, plus a precomputed map of the whitespace between them so you can route rivers and wrap balloons without re-deriving any geometry. See Concepts for the full vocabulary.

Two halves#

This repository is two things:

  • a CV/OCR pipeline (Python, run with uv) that turns the source scanned PDF into a canonical OCR database and normalized page images — see The Pipeline; and
  • a set of npm packages — a TypeScript library plus two data packages — that let anyone build erasure poetry from the book with zero configuration.

All OCR is local (macOS Vision); no cloud APIs are used.

The three npm packages#

Package What it is Size (unpacked)
humument Renderer-agnostic erasure-poetry primitives (words, OCR boxes, whitespace rivers, blob/balloon/banner/ribbon geometry). Zero runtime deps. ~230 KB
humument-data Per-page OCR JSON (words, bboxes, gutters, navigation graph), gzipped. ~27 MB
humument-images 367 normalized B&W page JPEGs. ~126 MB

humument's defaults fetch humument-data and humument-images straight from the jsDelivr CDN, so Humument.load({ page: 33 }) works from any origin without hosting anything. See npm Packages for why data and images ship separately.

Where to go next#

  • Quick Start — a zero-config sketch: load a page and draw it with Canvas2D.
  • Concepts — chunks, rivers, balloons, gutters, docks, and the coordinate system.
  • Library API — the full H.* namespace and the Humument loader.
  • Data Format — the JSON contract and the OCR database schema.

License#

The 1892 text is in the public domain; this code, the derived data, and the packaging are MIT-licensed. See Provenance & License.
